Google Workspace SSO Configuration Guide

  • Updated

1. Introduction

Google Workspace SSO allows your organization to use your Google account details to sign into other business applications. This means your users log in once using their Google Workspace credentials and are automatically signed in to approved apps. In this guide, we explain how to set up Google Workspace as an Identity Provider (IdP) to access the Cyber Guru platform.

2. What You Need Before You Begin

  • An administrator account for Google Workspace (the account with the “Admin” role)
  • Access to your Google Admin Console (normally at https://admin.google.com)
  • Availability of the values for the following claims:
    • username
    • firstName
    • lastName
    • email
  • Get the IdP provider metadata as a URL reachable over the internet
  • Identify users to be authorized to access the application (suitable groups would be better)
  • If possible, create a user for Cyber Guru for testing purposes

3. Step-by-Step Instructions

3.1. Sign Into the Google Admin Console

  • Open your web browser and go to https://admin.google.com.
  • Sign in using your administrator email address and password.

3.2. Locate the SAML SSO Settings and send IdP Metadata

  • Depending on your Google Admin Console layout, you’ll find SSO settings in one of two main places. Try the following:
  • Option A: From the Homepage
    • In the Admin Console homepage
    • Look for “Apps” (it might be represented as an icon or listed in the menu) and click it.
    • Next, click on “Web and mobile apps.” This is where you manage SAML apps.
  • Option B: Using the Security Menu
    • If you see “Security” on the homepage, click that.
    • Under “Security,” look for “Set up single sign-on (SSO) for SAML applications.” (If you do not see “Security,” click “Show More” or use the search bar at the top of the Admin Console to search “SSO”).

Option used in this document is n.1

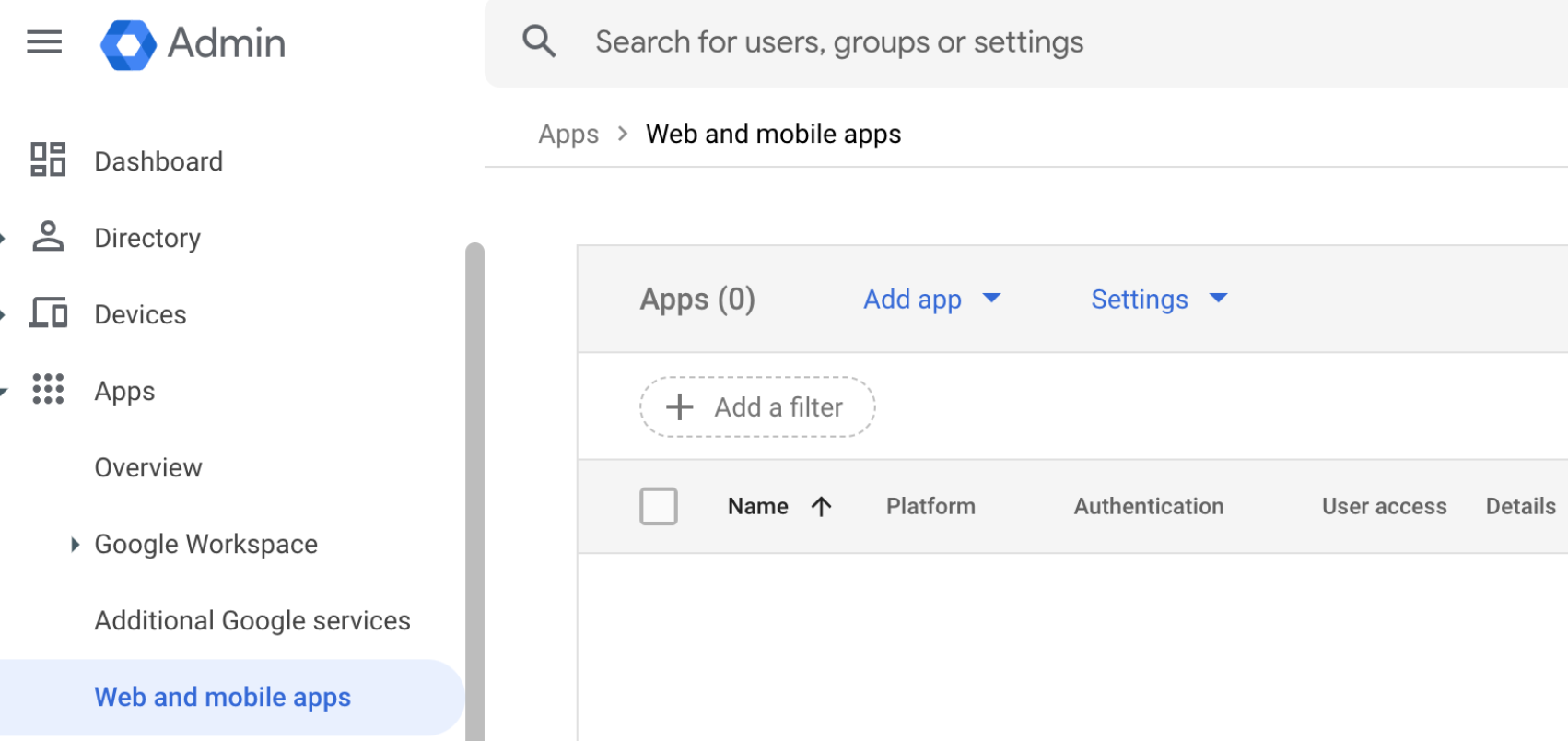

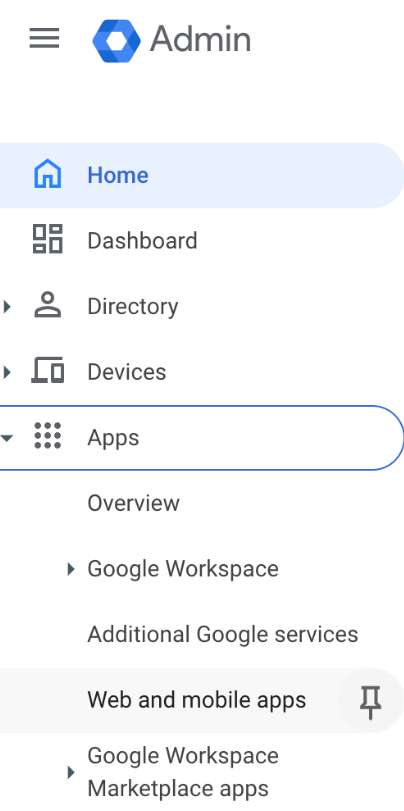

On the left menu select “Apps” and then “Web and mobile apps”

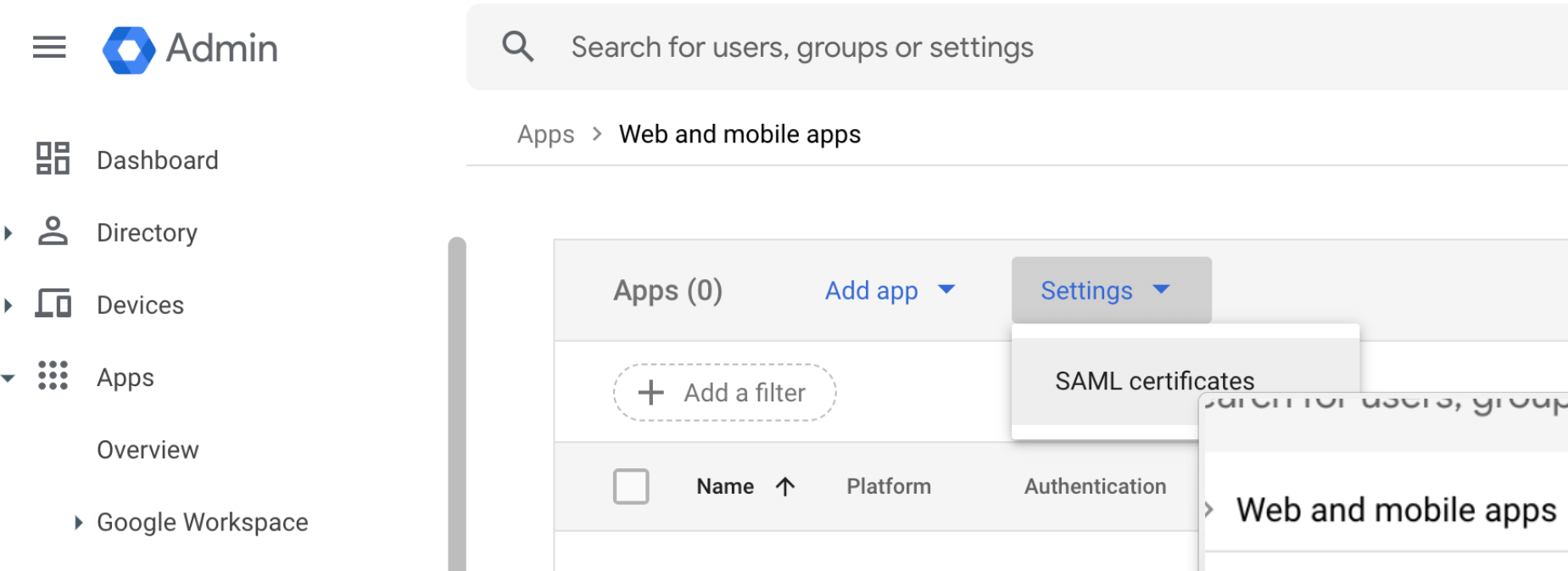

Select “Settings” -> “SAML certificates”

You will get a page with Google Identity Provider details.

Go to the bottom of the page

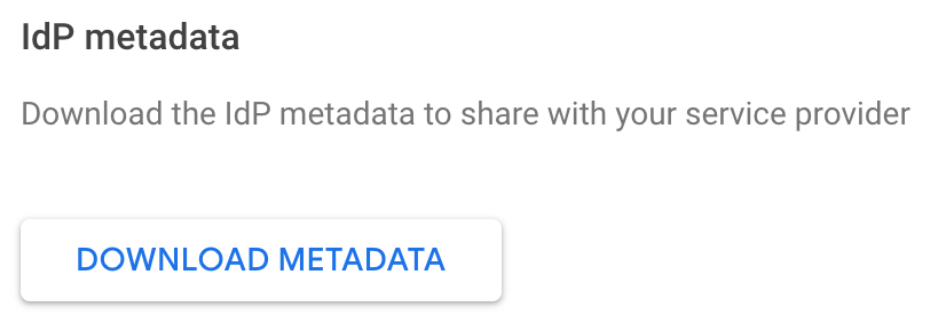

Click “DOWNLOAD METADATA”

Send the GoogleIDPMetadata.xml file to Cyber Guru. Once Cyber Guru completes the configuration on their end, the SP Metadata xml file will be sent to the customer.

3.3. Add a New SAML App

Return to the main menu

Select “Apps” -> “web and mobile apps”

Then on the right pane select “Add app” -> “Add custom SAML app”

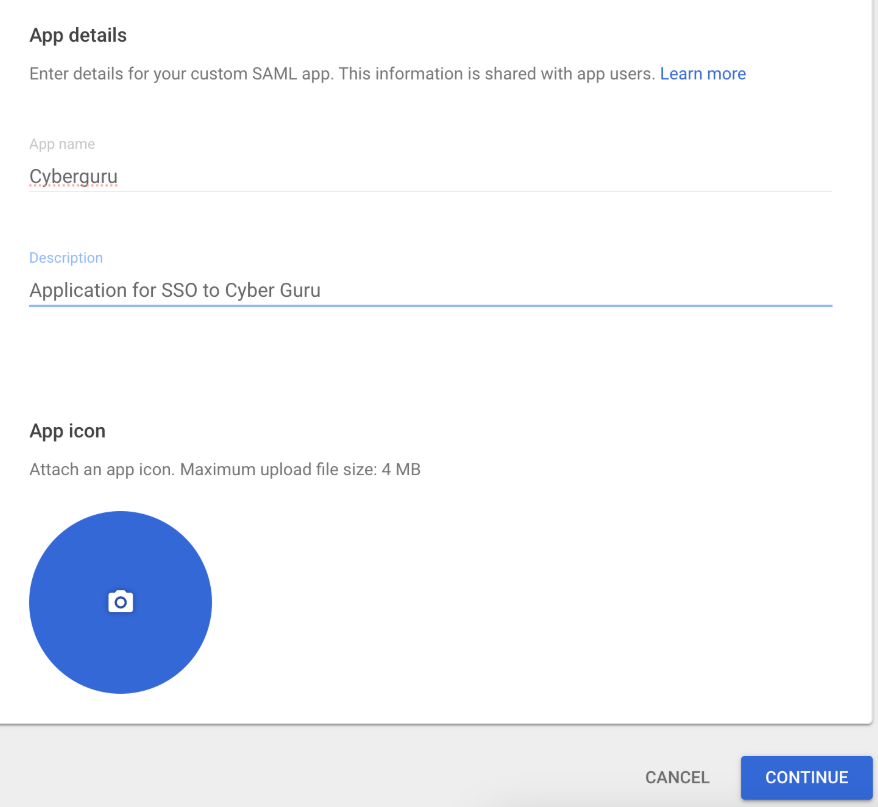

Fill in the “app name” and “Description” and click “Continue”.

These are the IdP metadata. You already sent this data in the previous steps.

Click “Continue”.

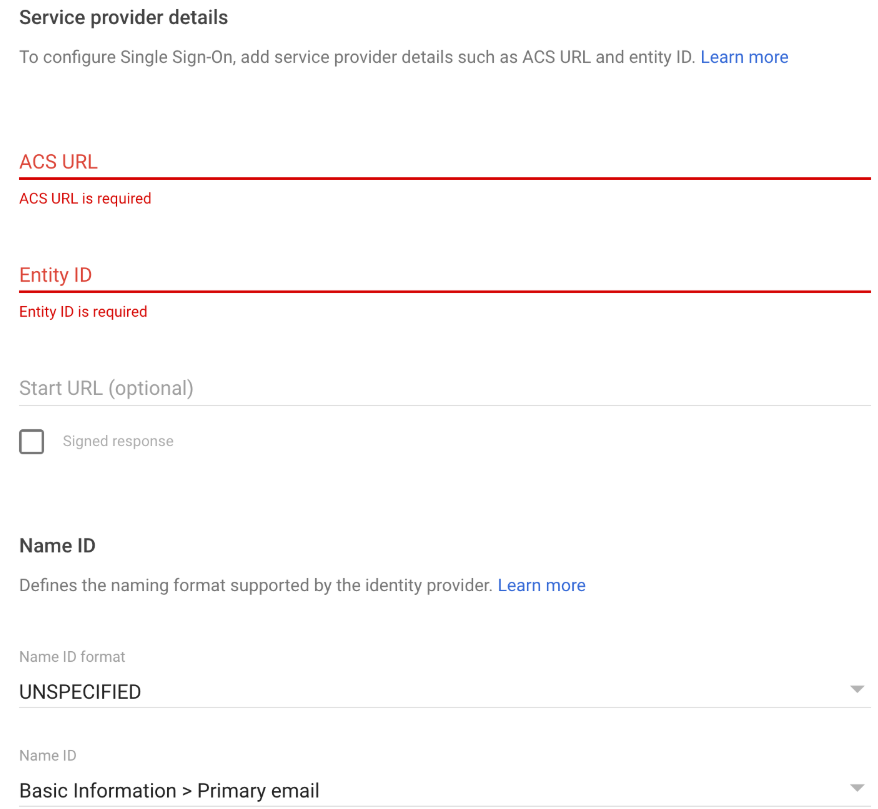

The values for the red fields (ACS URL and Entity ID) are in the SP metadata file sent from Cyber Guru. Below are the excerpts from the XML file where the data is located:

ACS URL

<md:AssertionConsumerService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location="https://login.stage.cyberguru.dev/realms/techcorpgoo/broker/saml/endpoint" isDefault="true" index="1"/>

Entity ID

<md:EntityDescriptor xmlns="urn:oasis:names:tc:SAML:2.0:metadata" xmlns:md="urn:oasis:names:tc:SAML:2.0:metadata" xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion" xmlns:ds="http://www.w3.org/2000/09/xmldsig#" entityID="https://login.stage.cyberguru.dev/realms/techcorpgoo" ID="ID_dcdf9592-8351-4344-936c-5fc195636230">

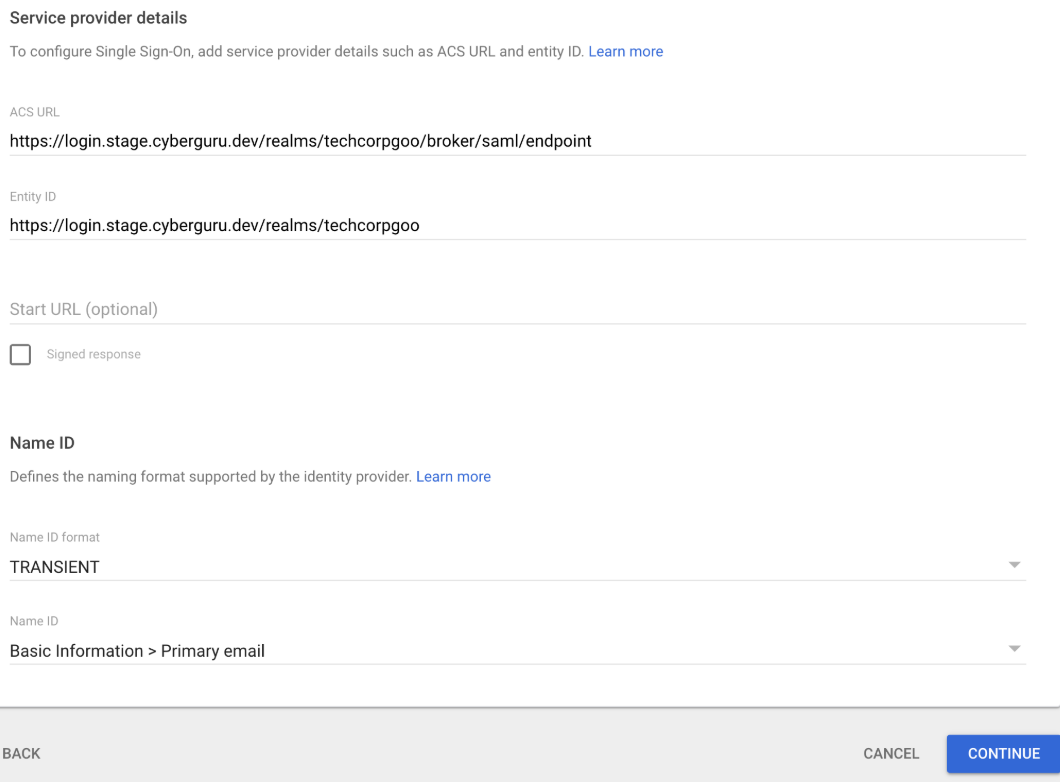

Fill in the form with the ACS URL and Entity ID, and change the “Name ID format” to “TRANSIENT”

Click "Continue"

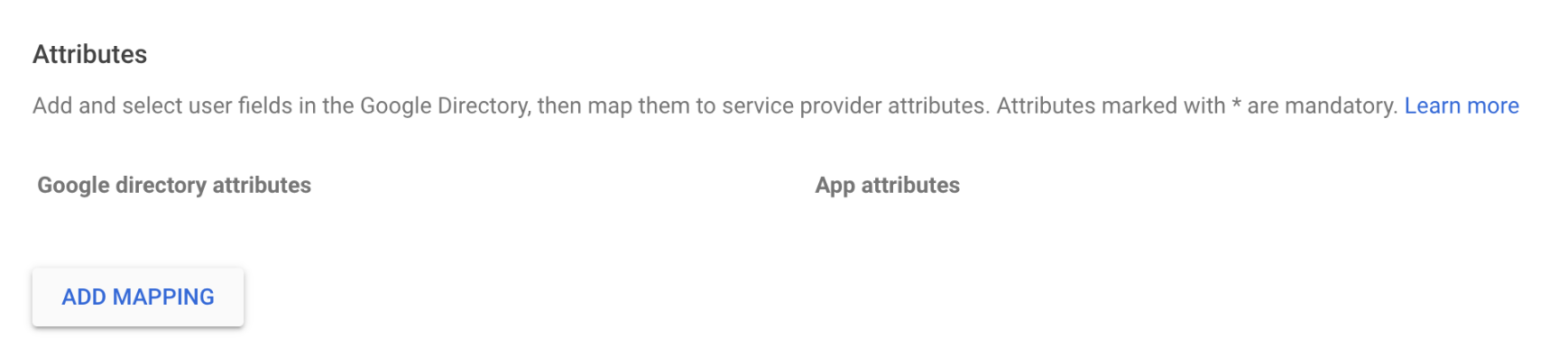

Click “ADD MAPPING”

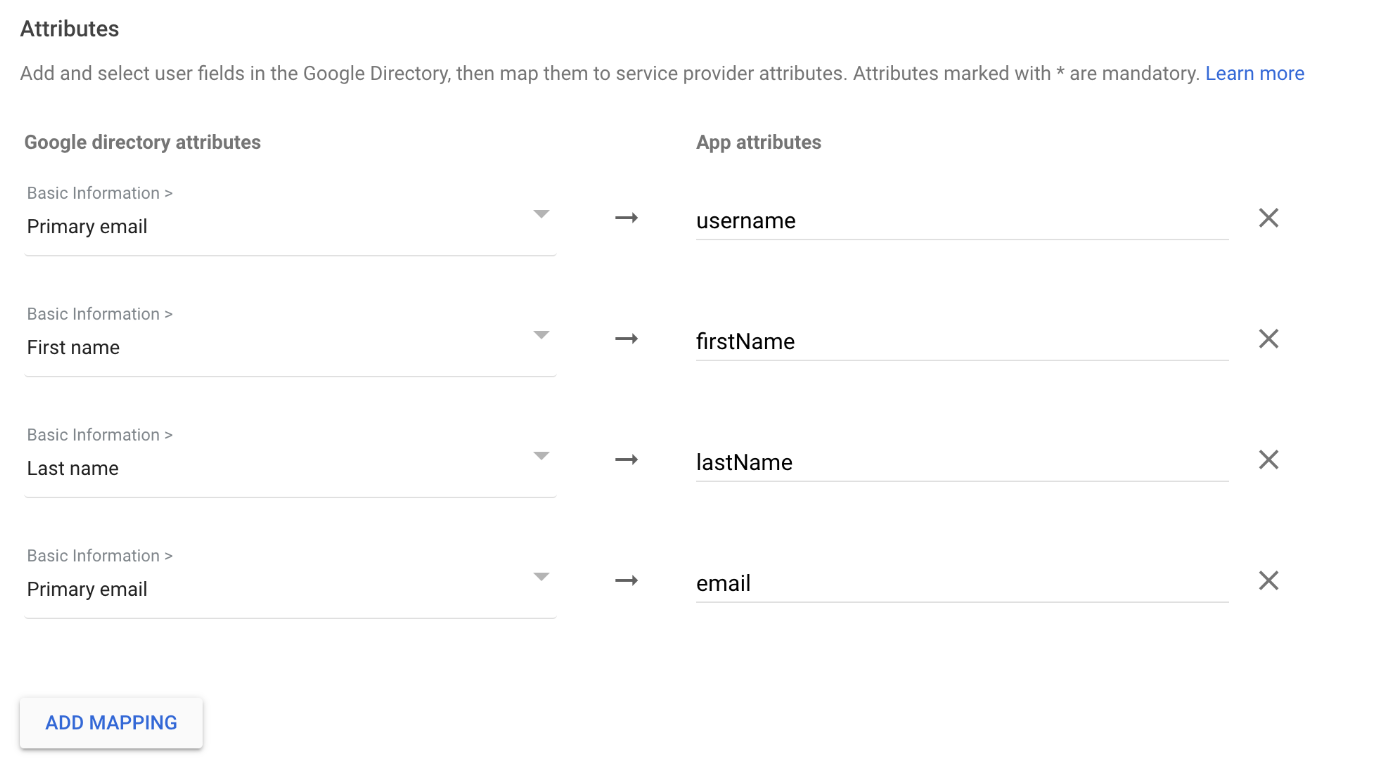

Here we configure the claims requested by Cyber Guru after the authentication.

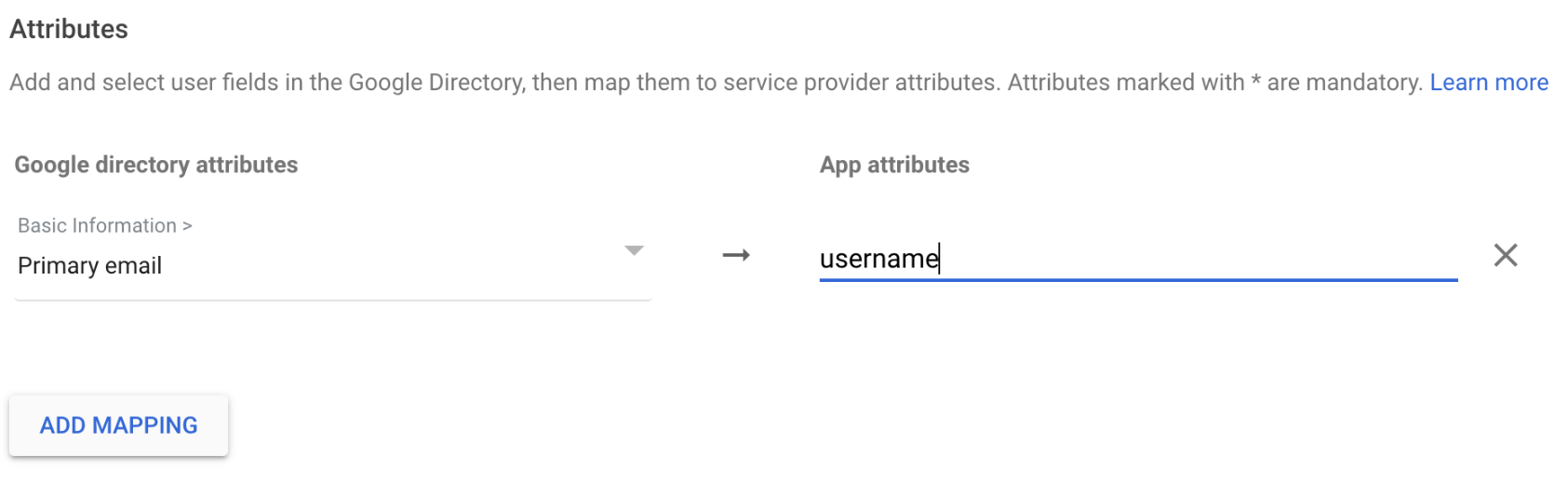

Username

NOTE: For this field Cyber Guru strongly suggests using a value that will not change in the future. So, if there's a chance the “Primary email” might change in the future, use a different field like “Employee ID” or something similar

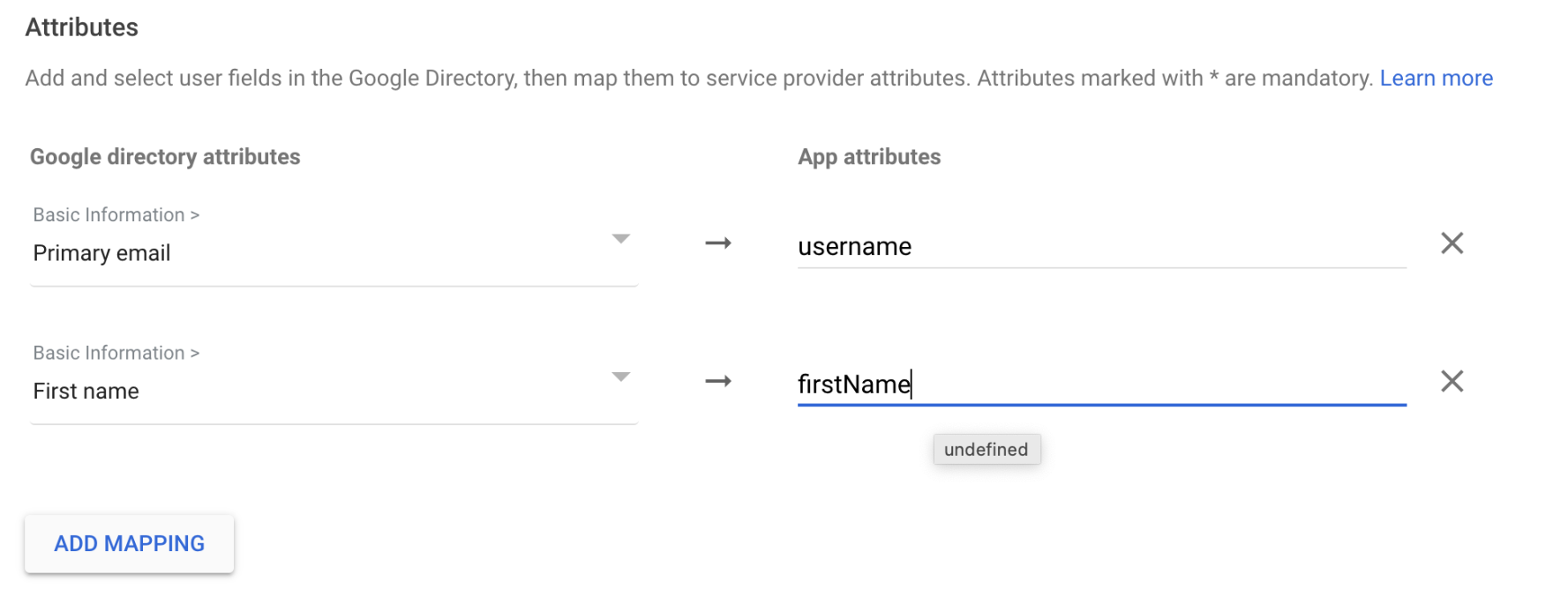

Click "ADD MAPPING"

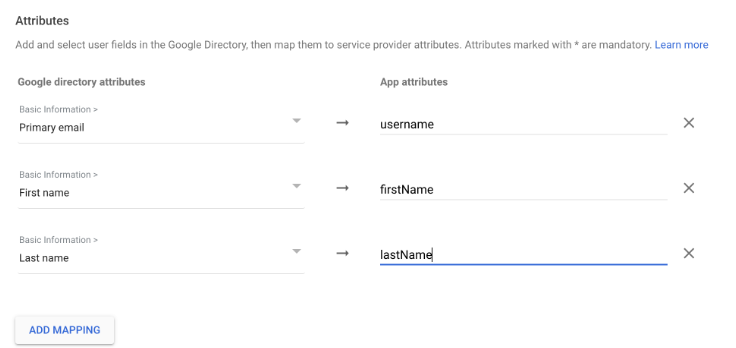

Click "ADD MAPPING"

Click "ADD MAPPING"

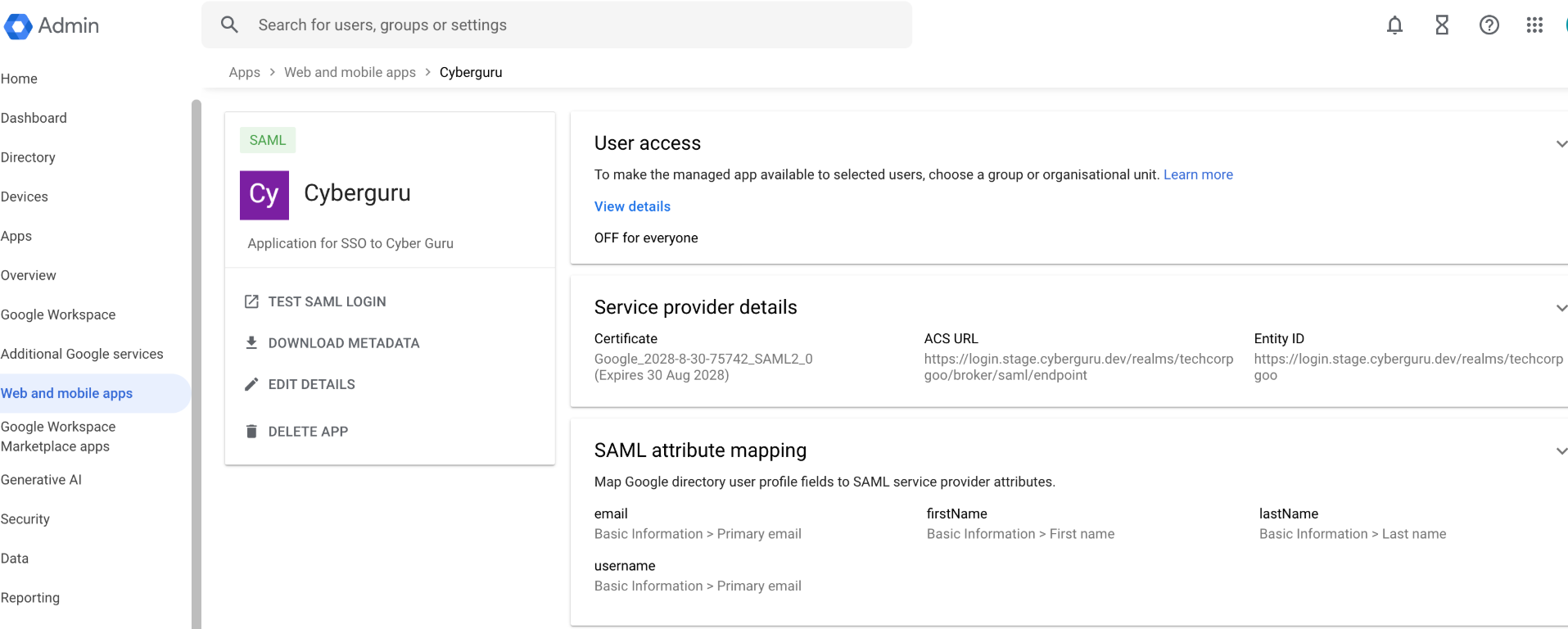

Click “Finish” at the end of the page. The app is created and this is what you should see:

3.4. Enable the App for Your Users

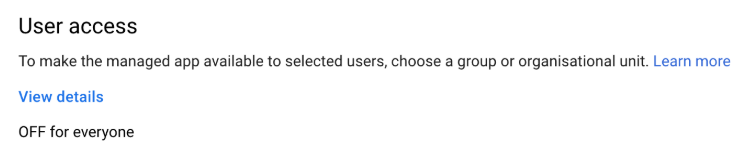

In the overview of the just created app, locate the User Access panel

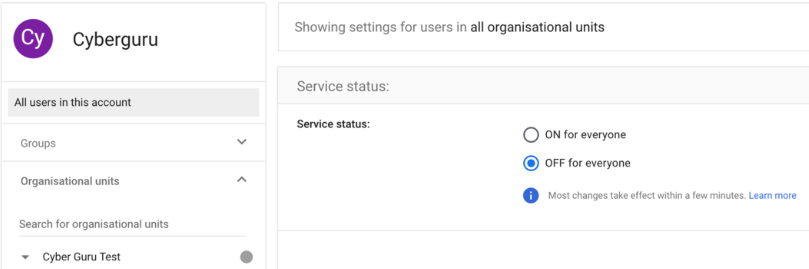

Click on "OFF for everyone"

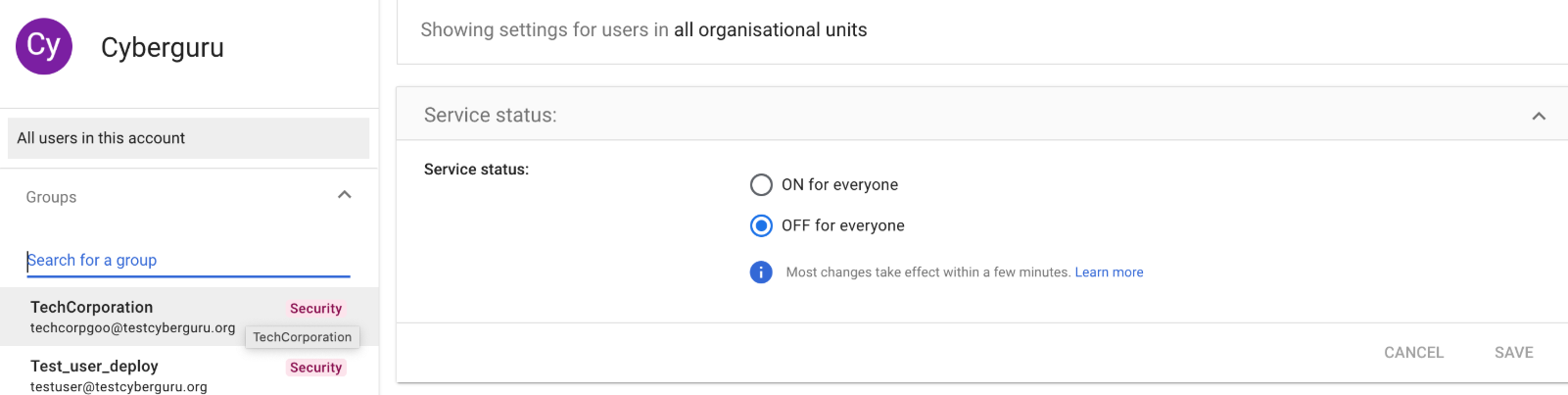

Click on “Groups” and select the group containing the users authorized to use the app.

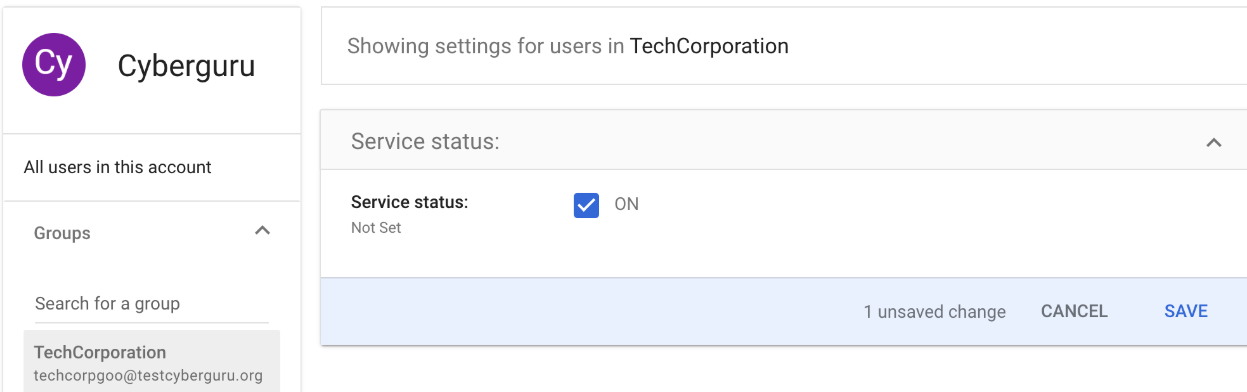

In this configuration example, we select TechCorporation. Please select your organization's group, enable the Service Status, and click “Save.”



3.5. Test the SSO Login

Before rolling it out to your entire organization, let’s test the setup:

Open an incognito or private browser window.

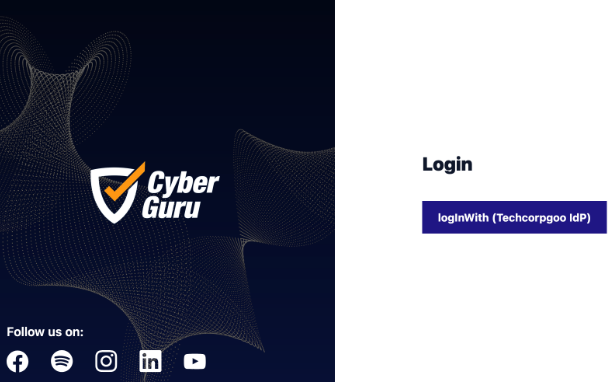

Click on the button “LogInWith (Techcorpgoo IdP)”

NOTE: Techcorpgoo is the company used for testing this guide.

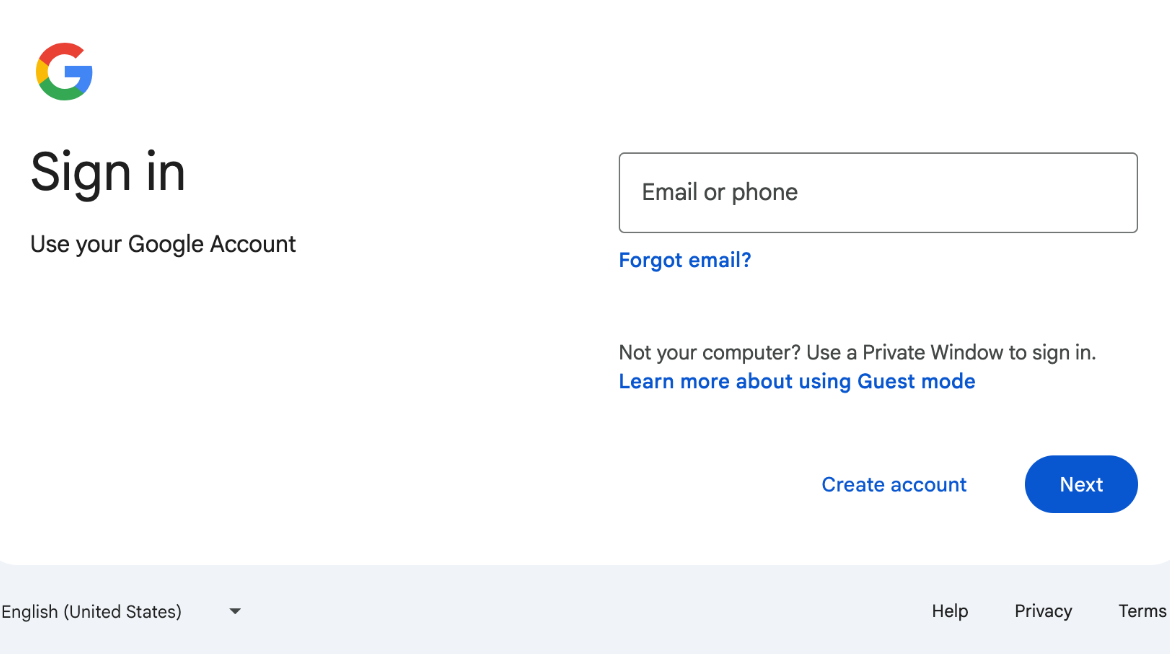

The login page for your Google Workspace will appear:

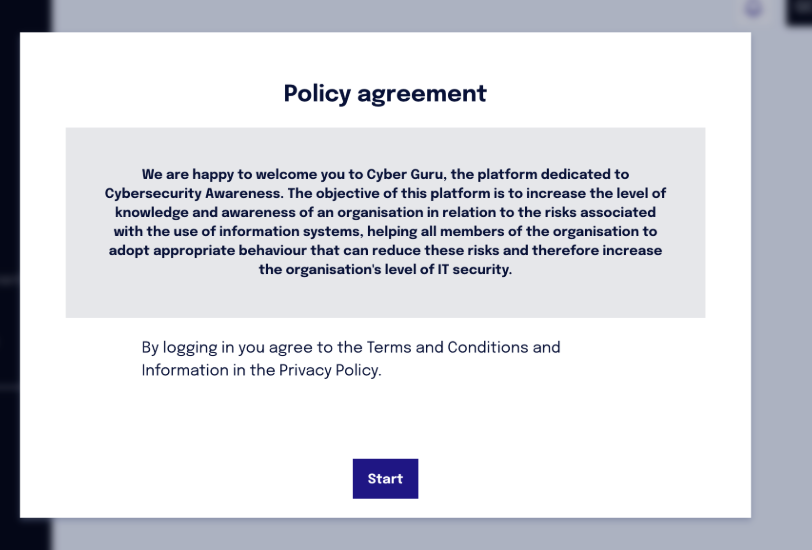

Sign in using your Google Workspace credentials and then you'll be redirected back to the service. If everything works fine, you should see the Cyber Guru welcome page.






4. Troubleshooting and Tips
If you get an error page when logging in, double-check that the SSO URL and other details entered in the service provider’s configuration match what you downloaded from Google.

Remember that DNS or certificate propagation might take a few minutes. If changes don’t show up right away, wait a bit and try again.

Keep the downloaded certificate or metadata file in a safe place. You might need to update it if there are changes in your Google Workspace configuration.

Using a SAML tracer, check the values of the claims in the SAML response. For example:

.

<saml2:AttributeStatement>
<saml2:Attribute Name="username">
<saml2:AttributeValue xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xsd:anyType" >
gianmarco.cagnotto@testcyberguru.org
</saml2:AttributeValue>
</saml2:Attribute>
<saml2:Attribute Name="firstName"><saml2:AttributeValue xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xsd:anyType" >
Gianmarco
</saml2:AttributeValue>
</saml2:Attribute>
<saml2:Attribute Name="lastName">
<saml2:AttributeValue xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xsd:anyType" >
Cagnotto</saml2:AttributeValue>
</saml2:Attribute>
<saml2:Attribute Name="email">
<saml2:AttributeValue xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xsd:anyType" >
gianmarco.cagnotto@testcyberguru.org
</saml2:AttributeValue>
</saml2:Attribute>
</saml2:AttributeStatement>

5. Getting More Help

  • Google has a dedicated Help Center at https://support.google.com/ for additional articles and troubleshooting tips.

  • If you’re ever unsure, ask your organization’s technical support or Google Workspace partner for assistance.
